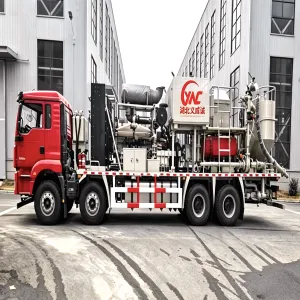

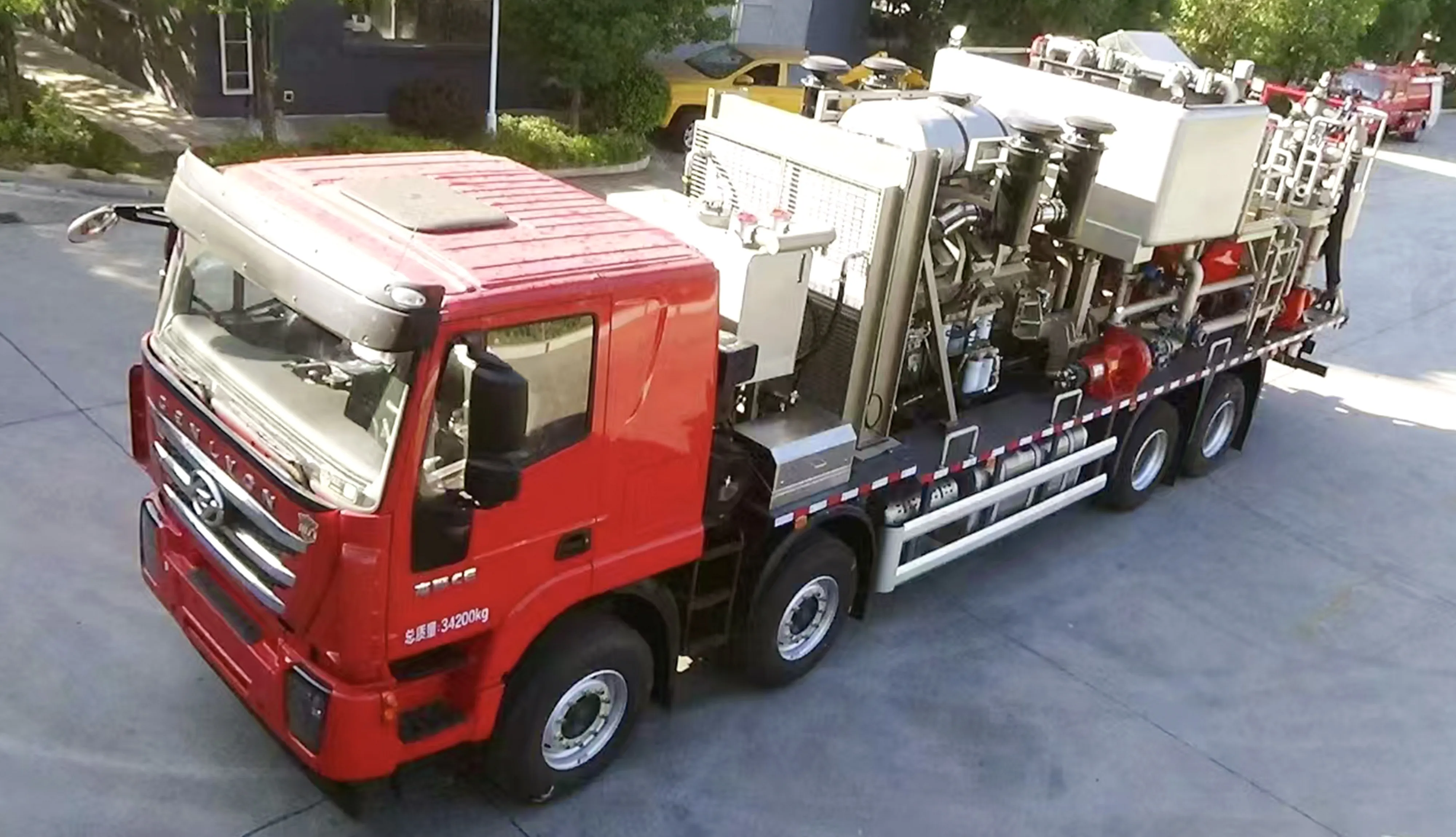

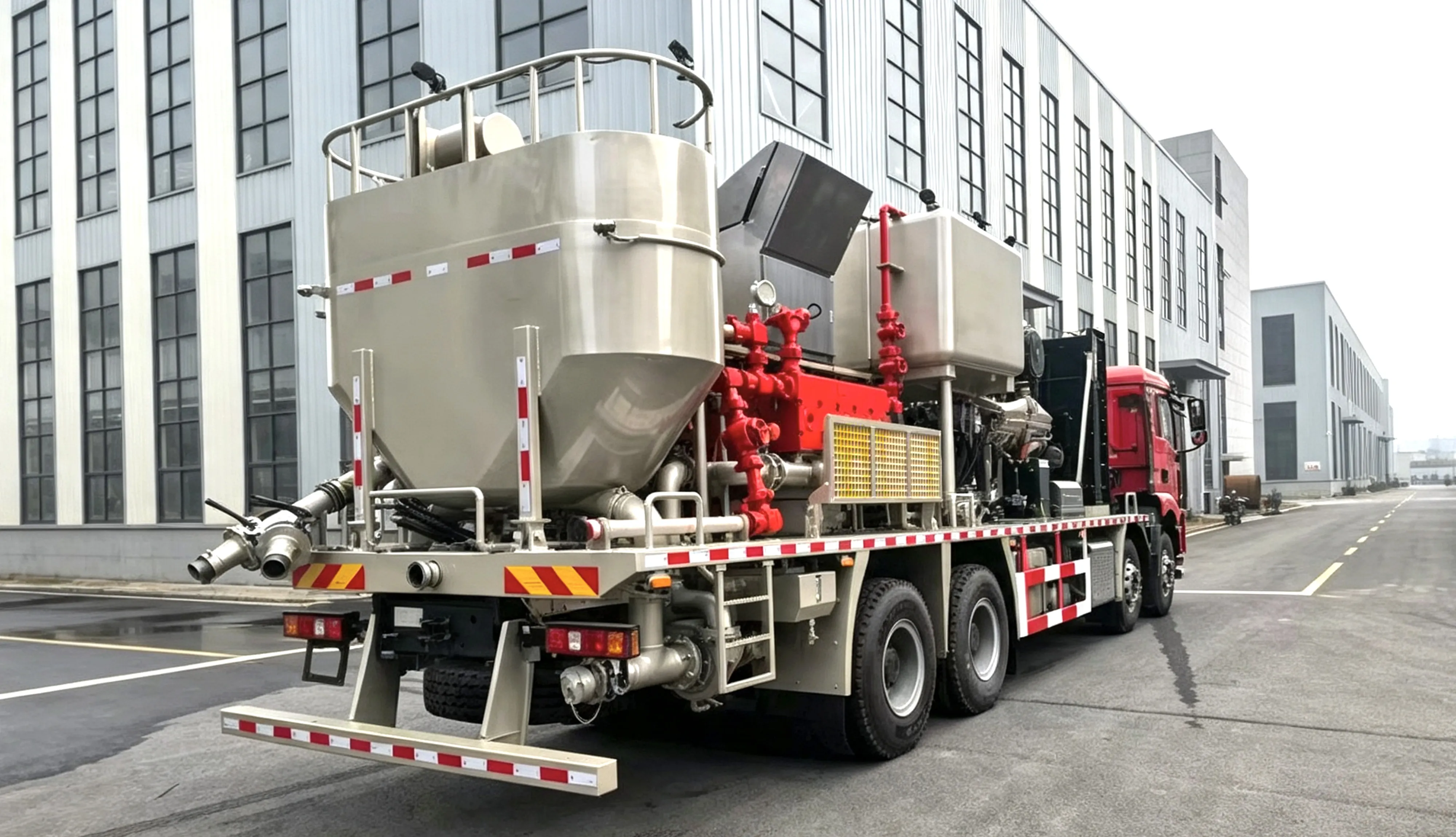

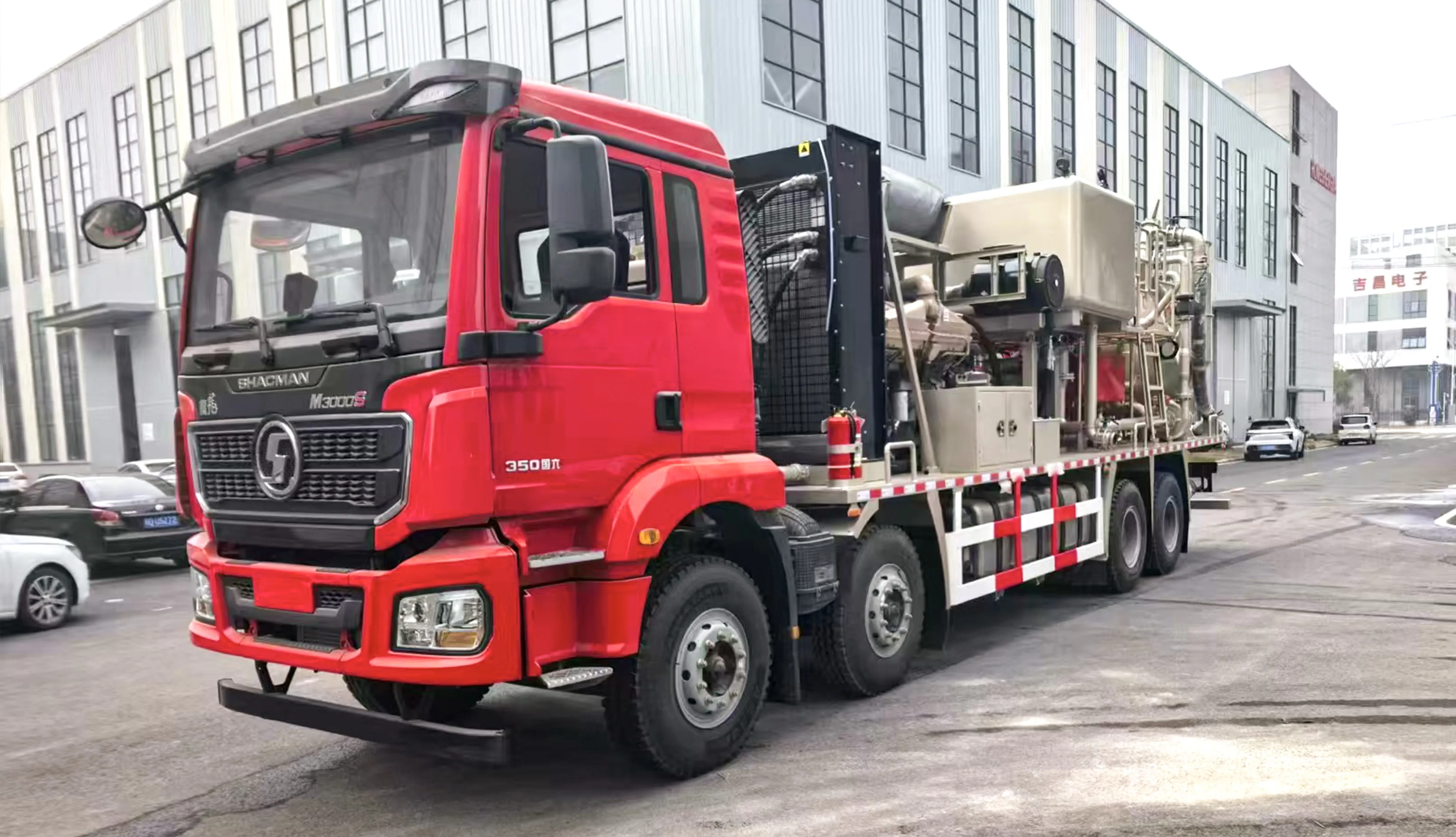

It is mainly used for cementing operations in wells deeper than 5000 m, with a rated working pressure of 70 MPa and a maximum working displacement of 3.0 m³/min. It is applicable to deep‑well cementing operations for deep oil wells, natural gas wells, coalbed‑methane wells and other deep‑well conditions.
| Vehicle Technical Specifications | |||
| Product Trademark | Chu Sheng Brand | Product Name | Well Cementing Truck |
| Chassis | ShaanxiAutomobile | Complete Vehicle Standard | 70‑30 Cementing Truck |
| Maximum Working Pressure | 70MPa | 0verall Dimensions(mm) | 11600×2550x3950 |
| Curb Weight(Kg) | 28000 | On-board Engine | Cummins KTA38‑C1200 |
| Gearbox | Guizhou Kaixing By970D | Large Pump | 5‑Plunger Pump TP700 |
| Mud Pump | Mission | HydraulicPumpand Motor | Denison, Parker, Danfoss |
Maximum Working Displacement | 3.0m³/min | Control System | Centralized Well Cementing Control |
| Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
| WP10.400E62 | Weichai Power Co.,Ltd. | 7800 | 257 |
整车技术参数 | |||
产品商标 Product Trademark | 楚胜牌 Chu Sheng Brand | 产品名称 Product Name | 固井车 Well Cementing Truck |
底盘 Chassis | 陕汽 ShaanxiAutomobile | 整车标准 Complete Vehicle Standard | 70-30固井车 45-21Well Cementing Truck |
最大工作压力 Maximum Working Pressure |
70MPa | 外形尺寸(mm) 0verall Dimensions(mm) | 11600×2550x3950 |
整备质量(Kg) Curb Weight(Kg) |
28000 | 台上发动机 On-board Engine | 康明斯KTA38-C1200 |
变速箱 Gearbox | 贵州凯星BY970D Guizhou Kaixing By970D | 大泵 Large Pump | 五缸柱塞泵TP700 |
泥浆泵 Mud Pump | 米森 Mission | 液压泵及马达 HydraulicPumpand Motor | 丹尼逊、派克、丹佛斯
|
最大工作排量 | 3.0m³/min | 控制系统 Control System | 固井集中控制 Centralized Well Cementing Control |
发动机型号 Engine Model | 发动机生产企业 Engine Manufacturer | 排量(ml) Displacement(ml) | 功率(Kw) Power(Kw) |
WP10.400E62 | 潍柴动力股份有限公司 Weichai Power Co.,Ltd. | 7800 | 257 |
